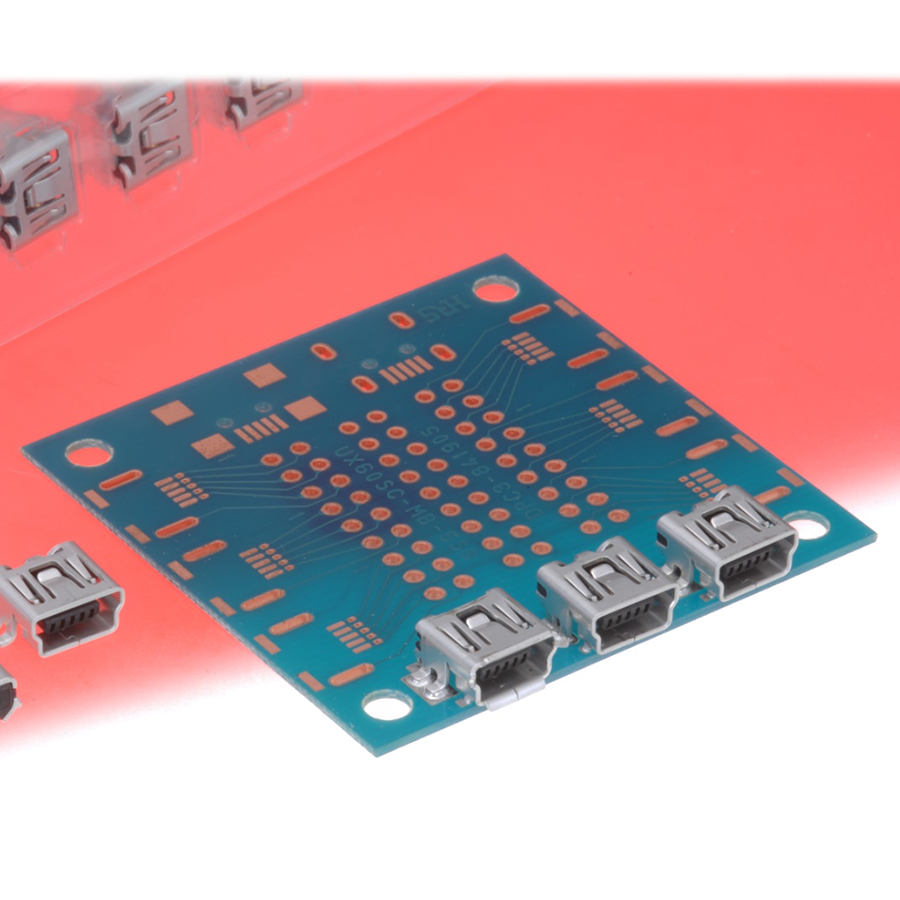

UX60SC-MB-5S8
Manufacturer:
Hirose Electric
Mfr.Part #:
UX60SC-MB-5S8
Datasheet:
Description:
USB Connectors SMD/SMT Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 7.7 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 5 |
| Height | 4.6 mm |
| Packaging | Reel |
| Voltage Rating | 5 V |
| Depth | 7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Manufacturer Package Identifier | UX60SC-MB-5S8 |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 800 µm |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 5 V |
| Mounting Angle | Right Angle |
Stock: 2346
Distributors
pcbx
pcbxUnit Price$0.58220
Ext.Price$0.58220
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58220 | $0.58220 |
| 10 | $0.49500 | $4.95000 |
| 25 | $0.47534 | $11.88350 |
| 50 | $0.46508 | $23.25400 |
| 100 | $0.44456 | $44.45600 |
| 300 | $0.40190 | $120.57000 |
| 500 | $0.36334 | $181.67000 |
| 1000 | $0.33086 | $330.86000 |
